WobbleMeter: NewHeights XT Stability Test

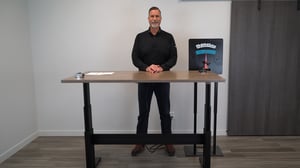

In this article, we're going to test the stability of the NewHeights XT electric standing desk from RightAngle Products. To measure the XT's level of stability, we will be using the WobbleMeter.

What is the WobbleMeter?

If this is your first introduction to the WobbleMeter, you might be wondering what exactly it is. The WobbleMeter is a tool used to measure a standing desk’s stability level. It identifies the stability of both side to side (wobble) and front to back (rocking) movement of a desk. Using the WobbleMeter as a standardized testing method makes it possible for buyers like yourself to find out just how stable a standing desk is before you buy.

Have a suggestion for which standing desk we should test next? Let us know here!

If you’d like a more in-depth explanation of the WobbleMeter, check out our article, WobbleMeter Explained



WobbleMeter Score Guide

0-20 Excellent Stability

A score of 0 to 20 means that the desk has very little to no detectable wobble or rocking. A majority of desks will receive a score in this range when at its lowest height, when they’re typically the most stable.

21 - 30 = Very Good to Good Stability

Desks scoring between 21 and 30 have slight movement, but it won’t be noticed by most users.

31 - 40 = Good to Fair Stability

The wobble or rocking becomes more noticeable for desks scoring between 31 and 40.

41 - 50 = Fair to Poor Stability

At a score of 41 to 50, a majority of users will notice side to side or front to back movement in the desk.

51 - 60+ = Very Poor Stability

When scores reach 51 or higher, the presence of wobble or rocking will be undeniable. All users will be able to see there is a significant amount of movement.



NewHeights XT Product Specifications

Height Adjustment Range: 24” - 51” (with leveler glides)

Travel Speed: 1.5" per Second

Weight Capacity: 325 lbs.

Worksurface Size: 24" D x 60" W , 1 1/8 " thick

Wobble Deflection Scores (Side to Side Movement)

Wobble Scores - Overview

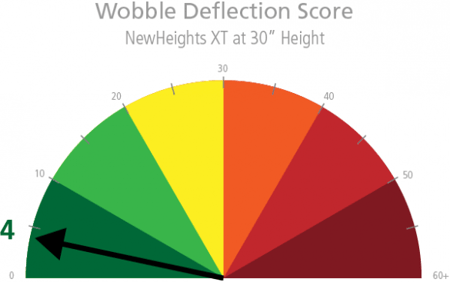

Wobble_30H-1-585x367

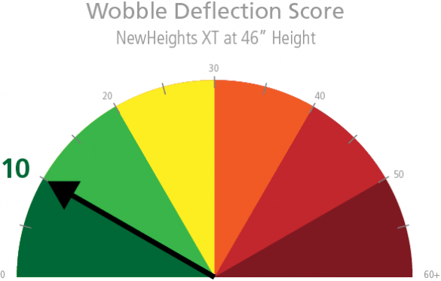

Wobble_46H-1-585x374



Wobble Scores - Detailed

Detailed Wobble Deflection Scores at 30" Height

Pull Force 5 lbs 10 lbs 15 lbs Total Score
Score 0 1 3 4



30H_10lb_cropped-2

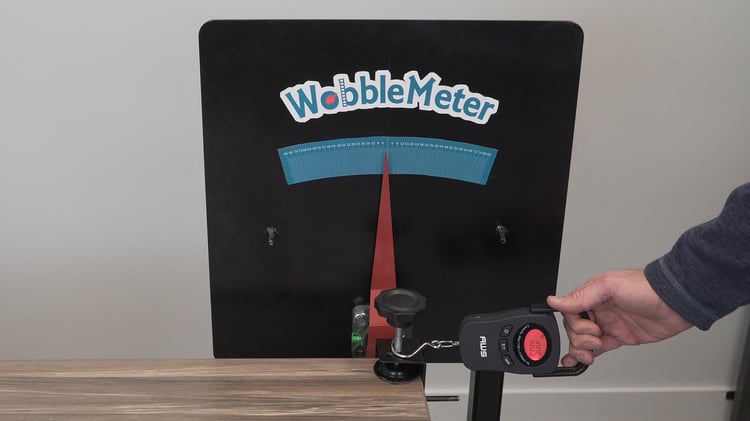

Wobble Deflection Score at 30" Height with 10 lb. Pull.

Detailed Wobble Deflection Scores at 46" Height

Pull Force 5 lbs 10 lbs 15 lbs Total Score
Score 2 3 5 10

46H_15lb_cropped-1

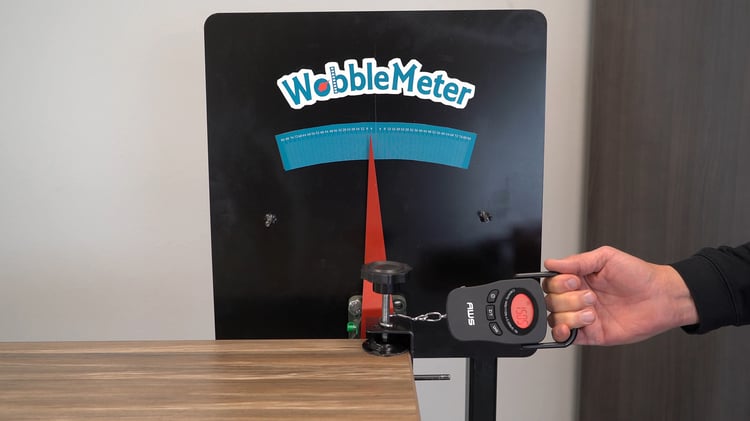

Wobble Deflection Score at 46" Height with 15 lb. Pull

Rocking Deflection Scores (Front to Back Movement)

Rocking Scores - Overview

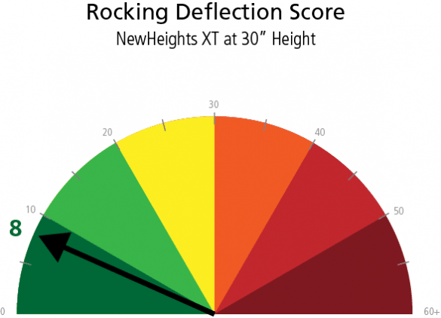

Rocking_30H-585x422

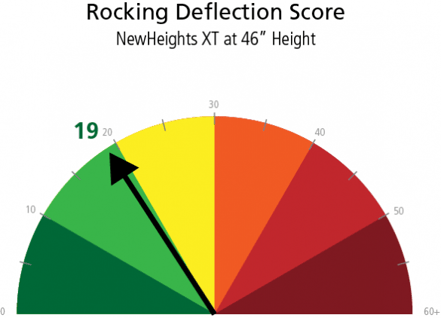

Rocking_46H-585x422



Rocking Scores - Detailed

Detailed Rocking Deflection Scores at 30" Height

Pull Force 5 lbs 10 lbs Total Score
Score 3 5 8



30H_10lb_2

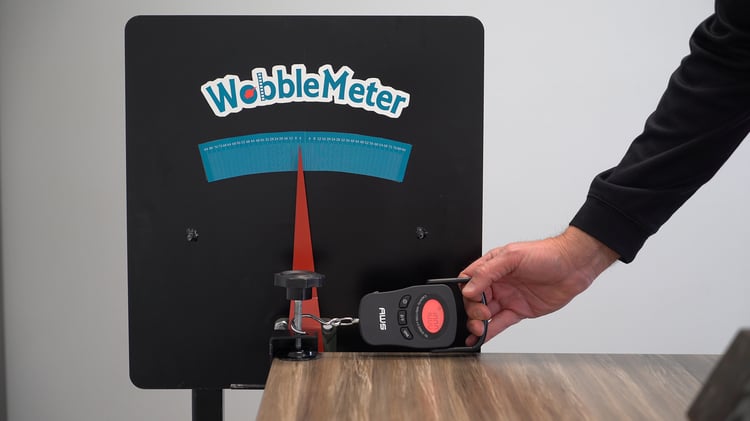

Rocking Deflection Score at 30" Height with 10 lb. Pull.

Detailed Rocking Deflection Scores at 46" Height

Pull Force 5 lbs 10 lbs Total Score
Score 6 13 19



46H_5lb_3

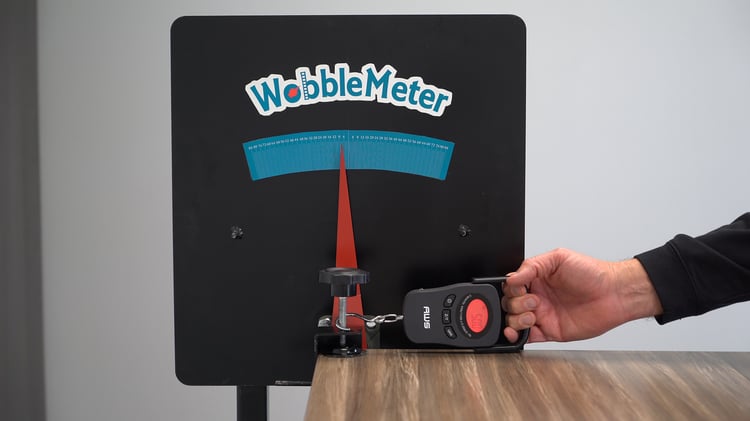

Rocking Deflection Score at 46" Height with 5 lb. Pull.
